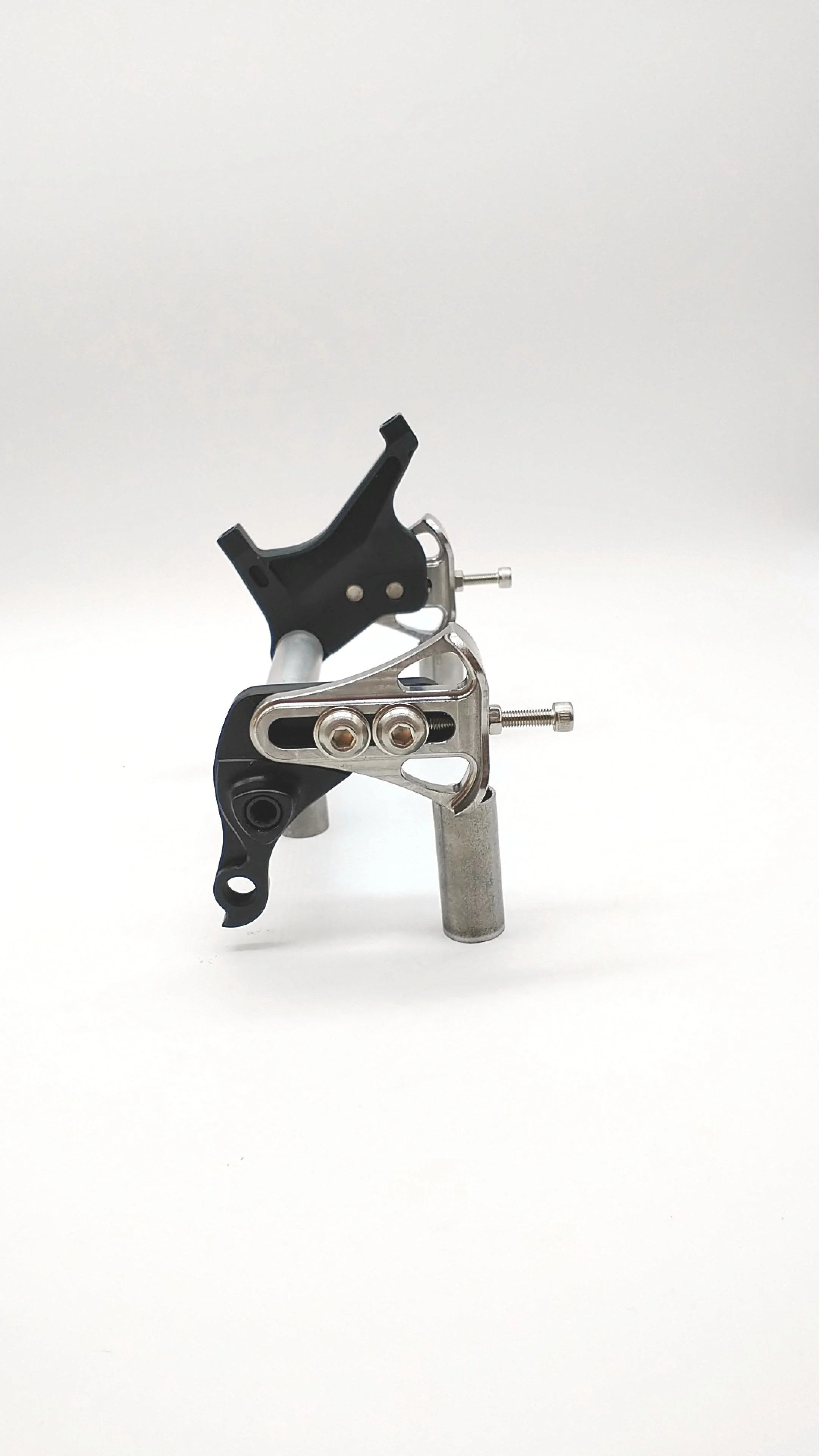

A SET OF VGS ( VARIED GEAR SLIDER) 12MM THRU AXLE PM MOUNT DROPOUTS

GREAT FOR MTB , GRAVEL , CROSS OR ANY VARIATION OF SINGLE SPEED OR GEARED BIKES

ALL FLANGES AND INSERTS ARE 100% CNC MACHINED IN USA

FLANGE MATERIAL - 1018 STEEL CNC MACHINED - FLANGES ARE 1” ( 25.4MM) AT WIDEST STAY CONTACT AREA , TO BE WELL SUITED FOR 3/4”/19MM STAYS ENDS

THE FLANGE/INSERT RANGE OF AJUSTABILITY IS .800” / 20MM

INSERT - 12MM X 1.5TP THRU AXLE - 160MM ROTOR POST BRAKE MOUNT , DRIVE SIDE 30MM HANGER 6061 ALUMINUM CNC MACHINED - ANODIZED BLACK

HARDWARE - ALL HARWARE IS STAINLESS STEEL

4EA- M8 X 1.25 BHSC INSERT FASTENERS W/ M8 FLAT WASHER

2EA - M5X.8 X 35MM SHCS ADJUSTER BOLT W/ M5X.8 HEX LOCKNUT

WEIGHT - COMPLETE SET 309 GRAMS / .68LBS

SKU FRM-DOR-VGS-S12PMDH

CLICK HERE TO PURCHASE AXLES

USE BFS AXLE :

TA-BFS-12B-168-1.5-15 FOR 142 HUB SPACING

TA-BFS-12B-174-1.5-15 FOR 148 BOOST HUB SPACING

TA-BFS-12B-183-1.5-15 FOR 157 SUPER BOOST SPACING

TA-BFS-12B-223-1.5-15 FOR 197MM FAT HUB SPACING
