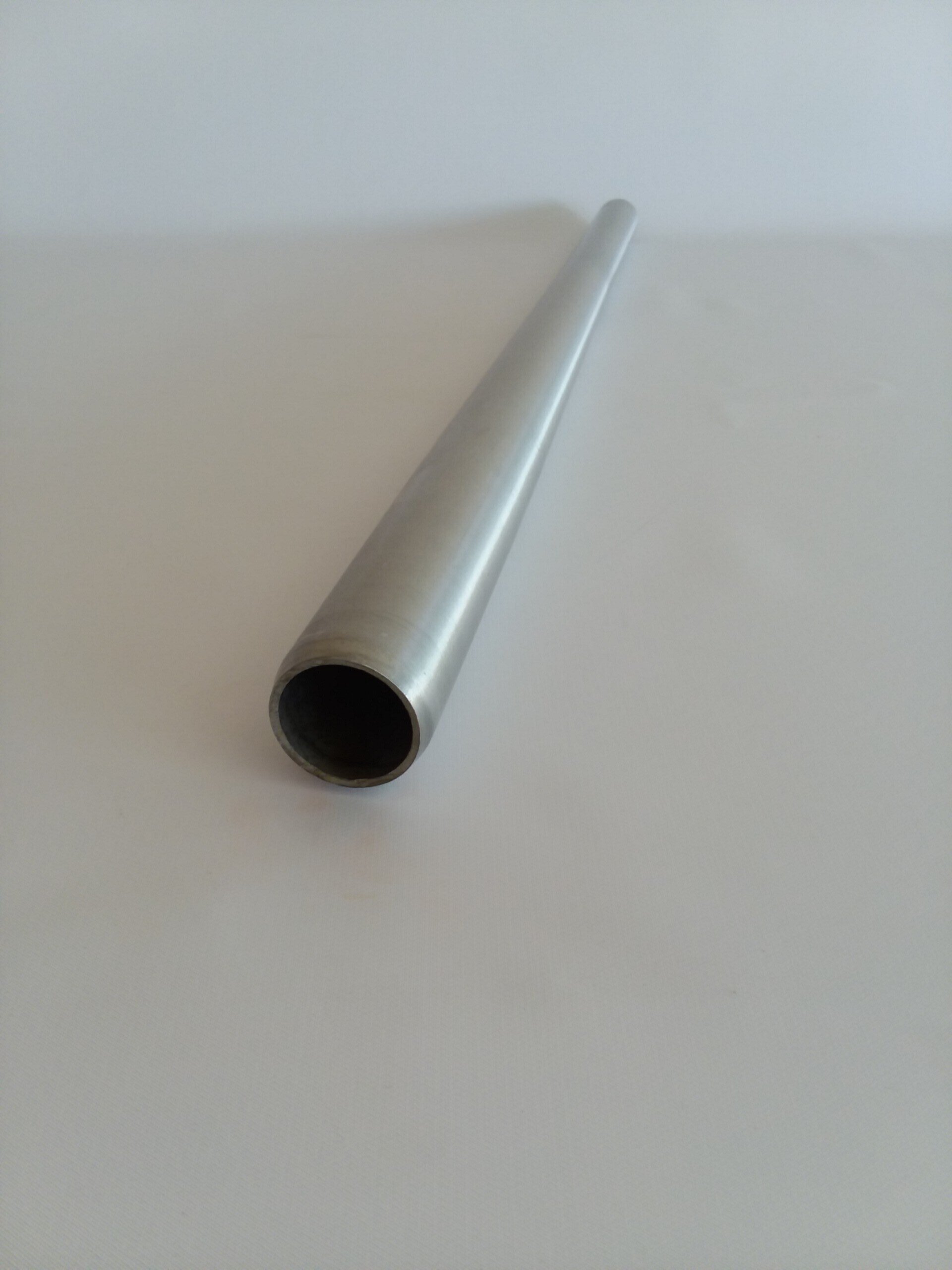

DEDACCIAI FIRE SERIES 7005 42.6MM TAPER TO 34MM DIAMETER ROUND TOP TUBE
SKU -TBEA-MTO426E5011
42.6/34MM Ø x 1.5/1.2MM X 680MM LONG
CLICK HERE FOR PDF DRAWING NOTE: ACTUAL TUBE TAPER IS VERY GRADUAL COMPARED TO DRAWING
WEIGHT 302 GRAMS
TYPICAL MECHANICAL PROPRIETIES OF 7005 ALLOY TUBING IN T6 STATE:
ULTIMATE STRENGTH > 55114 PSI
YIELD STRENGTH > 49312 PSI
ELONGATION % > 10%
STRUCTURAL ANALYSIS DATA
DENSITY 2.80 G/CM3
MODULUS OF ELASTICITY 71.5 GPA
YIELD STRENGTH > 320 MPA
