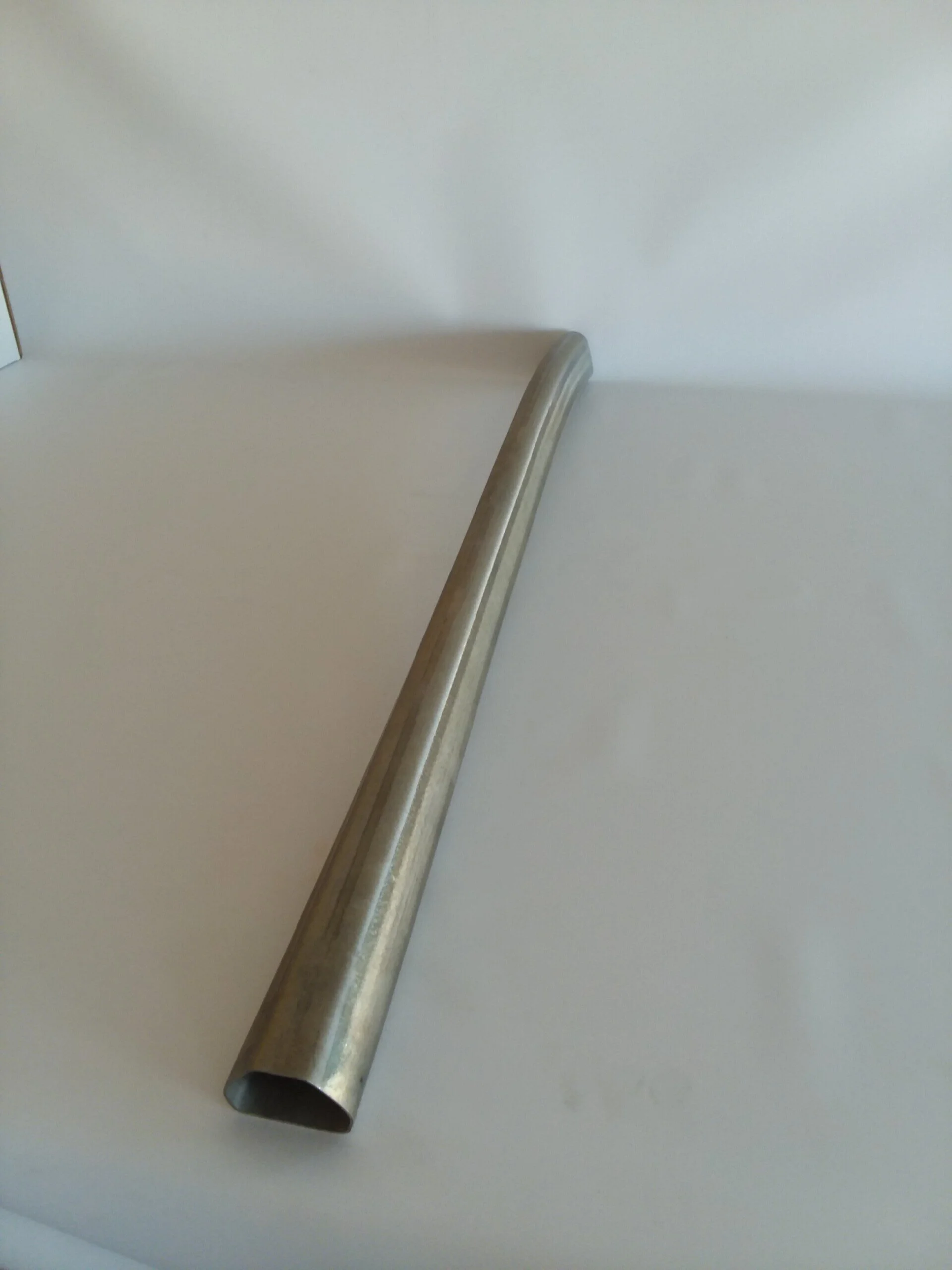

DEDACCIAI AEGIS SERIES 7005 48MM DIAMETER LTP SHAPE AND BENT DOWN TUBE
SKU TBEA-MTQ480E1021 SPEC SHEET CLICK HERE
44X49MM Ø x 1.9/1.3/X 53/37 BB SIDE X 775MM LONG
14° BEND 800MM RADIUS @ 230MM
WEIGHT 488GRAMS
TYPICAL MECHANICAL PROPRIETIES OF 7005 ALLOY TUBING IN T6 STATE:
ULTIMATE STRENGTH > 55114 PSI
YIELD STRENGTH > 49312 PSI
ELONGATION % > 10%
STRUCTURAL ANALYSIS DATA
DENSITY 2.80 G/CM3
MODULUS OF ELASTICITY 71.5 GPA
YIELD STRENGTH > 320 MPA
